Tilt & Turn Windows: The Ultimate Guide to Achieving 90% Energy Savings in Passive Houses
1. The Quest for Ultimate Energy Efficiency
In the world of high-performance building, the goal is clear: create a comfortable, healthy living environment that demands almost nothing from the grid. The Passive House standard stands as the pinnacle of this ambition, with its rigorous criteria for airtightness, thermal insulation, and minimal energy consumption. But achieving such dramatic savings—often up to 90% on heating and cooling bills—isn't just about adding more insulation. It's about mastering the details, and perhaps no detail is more critical than the building's windows.
Windows are traditionally the weakest link in a building's thermal envelope. They are where precious heat escapes in winter and unwanted heat intrudes in summer. To meet the extreme demands of Passive House, a window must be more than just double-glazed; it must be a precision-engineered barrier, perfectly sealed and intelligently operable. This is where conventional windows fall short, and where a specialized solution rises to the challenge.
The secret weapon for many successful Passive House projects isn't a secret at all in Europe, but is now revolutionizing North American building: the Tilt & Turn window system. This isn't a minor upgrade—it's a fundamental rethinking of window performance and function. At its core, the quest for ultimate energy efficiency leads to one inevitable conclusion: you need a window that can do two things exceptionally well. It must be hermetically sealed when closed, acting as a fixed part of the insulated wall. And when needed, it must offer versatile, secure ventilation without compromising its structural integrity or seal.
This dual demand is precisely what companies specializing in high-performance fenestration, like Guyu Hardware, are built to solve. By focusing on engineered systems rather than just products, they provide the essential components that make the Passive House standard achievable. As we delve deeper, you'll discover how the ingenious Tilt & Turn mechanism isn't just a fancy feature—it's the critical component that allows a window to achieve the near-perfect airtightness and superior insulation required to slash those energy bills by 90%.
To understand how this is possible, let's explore the three pillars of the Tilt & Turn advantage:
· Unmatched Airtightness: Multiple sealing points and a compression closure create a seal so tight it meets the most stringent Passive House certifications.
· Superior Thermal Performance: The robust frame and perfect seal work in tandem with advanced glazing to eliminate thermal bridges and cold drafts.
· Intelligent Ventilation & Safety: The unique dual-mode operation allows for secure rain-safe ventilation (tilt) and full, easy opening for cleaning and egress (turn).
Discover the complete engineering behind these transformative windows by exploring the specialized Tilt & Turn systems that are making ultra-efficient homes a practical reality.
2.Demystifying the Passive House (Passivhaus) Principle
At its core, the Passive House (or Passivhaus) standard isn't about adding complex gadgets; it's about a fundamental shift in building philosophy. Imagine a thermos flask. Its super-insulated walls keep your coffee hot or your water cold with minimal energy input. A Passive House works on the same principle: creating an exceptionally well-sealed, highly insulated envelope that drastically reduces the need for active heating and cooling.
The results are staggering. Certified Passive Houses can slash energy demand for heating and cooling by up to 90% compared to a conventional building. This is achieved through five key pillars:
· Super Insulation: Walls, roofs, and floors are wrapped in a continuous, thick layer of insulation, eliminating thermal bridges (weak spots where heat escapes).
· Airtight Construction: The entire building envelope is meticulously sealed. This prevents drafts, locks in conditioned air, and is the single most critical factor where windows play a decisive role.
· High-Performance Windows: Typically triple-glazed with insulated frames, these windows act as thermal assets, not liabilities, capturing solar heat while minimizing loss.
· Heat Recovery Ventilation (HRV): An airtight home needs fresh air. An HRV system continuously exchanges stale indoor air with fresh outdoor air, recovering over 90% of the heat from the exhaust air in the process.
· Thermal Bridge-Free Design: Every junction, from balcony connections to window installations, is designed to prevent heat leakage.
While all elements are crucial, the window is often called the "weakest link" in the thermal envelope. A standard window can undo the work of super-insulated walls. This is where the design and quality of the window unit—and more specifically, its airtight sealing mechanism—become non-negotiable. This is the exact challenge that high-performance tilt & turn windows are engineered to solve.
As a specialist in precision-engineered hardware systems, Guyu Hardware understands that the Passive House principle demands components that perform with exceptional reliability. The philosophy isn't just about saving energy; it's about building durability, comfort, and resilience—values that are built into every product designed for this rigorous standard.
3.Tilt & Turn Windows – A Deep Dive into Design and Function
At first glance, a Tilt & Turn window might look like a standard European-style window. But its secret lies in a sophisticated, multi-point locking mechanism operated by a single handle. This ingenious design isn't just about convenience; it's the engineering cornerstone that makes these windows a Passive House superstar.

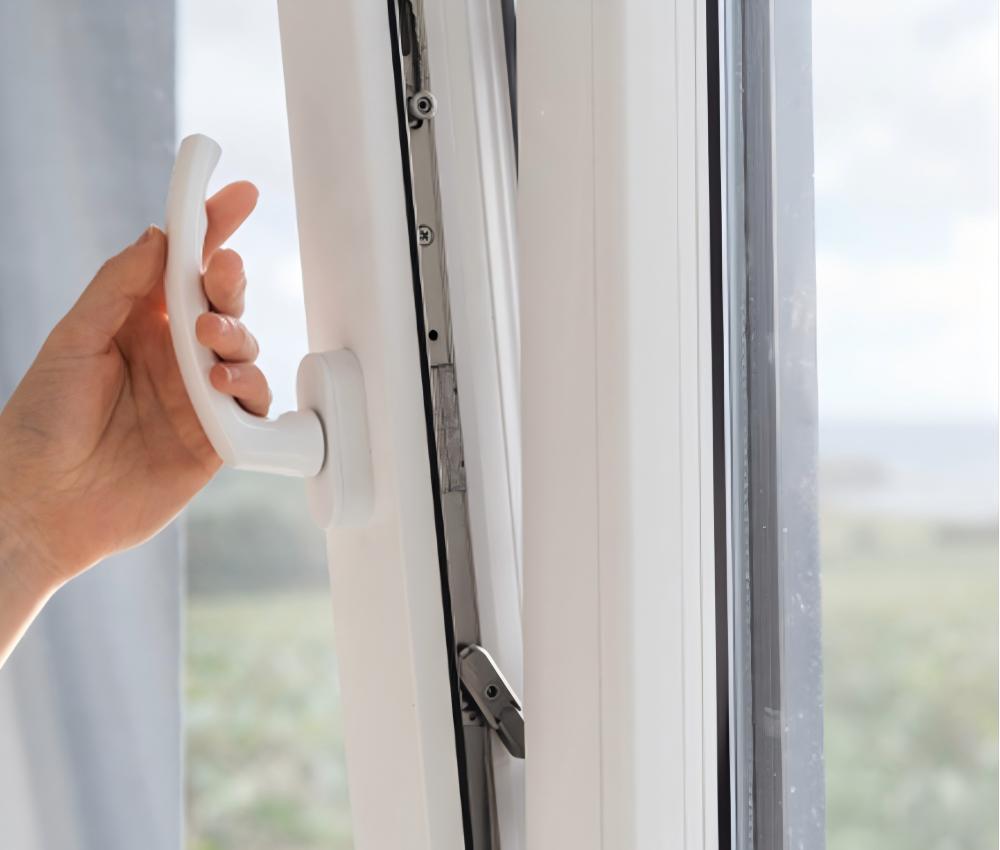

The Two Functions, One Handle
With a simple turn of the handle, the window transforms to meet your needs:
· Tilt Mode (Ventilation): Turn the handle upward, and the top of the window tilts inward. This allows for secure, draft-free ventilation. Rain is kept out, security is maintained, and energy isn't wasted—perfect for background air exchange in any weather.
· Turn Mode (Full Access): Turn the handle horizontally, and the entire window swings inward like a door. This provides easy cleaning from inside (a major safety and convenience benefit), emergency egress, and maximum airflow when needed.
Engineering for Extreme Performance
The magic that enables these functions while achieving near-perfect airtightness is in the hardware. High-quality systems, like those we specialize in at Guyu Hardware, feature:
· Multi-Point Locking: When closed, rotating the handle engages multiple locking pins around the entire window frame, creating a uniform, vice-like seal that compresses the gaskets.
· Heavy-Duty Hinges: These are engineered to support the weight of large, insulated glass units in both tilt and turn positions with precision and durability.
· Precision Adjustment: The hardware allows for micro-adjustments in all three dimensions (height, width, and pressure), ensuring the seal remains perfect for decades, not just years.
This robust hardware system is what allows Tilt & Turn windows to consistently achieve the ultra-low air infiltration rates (less than 0.3 ACH @50Pa) required for Passive House certification. It’s not just a window; it’s a sealed component of your building's thermal envelope.
For architects, builders, and homeowners serious about performance, understanding and specifying the right hardware is critical. Explore our range of engineered solutions in our dedicated Tilt & Turn System collection to see the components that make this energy-saving revolution possible.
4. The Engineering Behind Extreme Performance: Glazing, Frames, and Seals
To achieve the radical energy savings promised by the Passive House standard, every component must be engineered to perfection. It's not just about having good windows; it's about having windows that function as a seamless, hyper-efficient part of the building envelope. The magic lies in the synergy between three critical elements: advanced glazing, thermally broken frames, and multi-point sealing systems.
Triple-Glazed Insulated Glass Units (IGUs): The Thermal Barrier
The heart of any high-performance window is its glazing. Passive House windows typically use triple-pane Insulated Glass Units (IGUs). Here’s what makes them special:
· Multiple Panes & Gas Fills: Three panes of glass create two insulating air spaces, which are often filled with inert gases like Argon or Krypton. These gases are denser than air, drastically reducing convective heat transfer.
· Low-E Coatings: Microscopically thin, virtually invisible metallic coatings are applied to the glass surfaces. These "low-emissivity" coatings reflect radiant heat back into the home during winter and reflect solar heat away during summer, maintaining a consistent indoor temperature.
· Warm Edge Spacers: The spacer bar that separates the glass panes is a critical detail. High-performance windows use non-metal "warm edge" spacers made from composites or stainless steel foam to prevent condensation and thermal bridging at the glass edge.
Thermally Broken Frames: Stopping the Cold in Its Tracks
A triple-pane unit is only as good as the frame that holds it. A standard aluminum frame, for example, acts like a highway for heat to escape. The solution is a thermal break.
· A thermal break is a continuous barrier of low-conductivity material (like reinforced polyamide) inserted between the interior and exterior halves of the metal frame.
This break physically separates the inside and outside metal, preventing temperature transfer and bringing the frame's insulating value in line with the glass. Companies like Guyu Hardware engineer their tilt and turn window frames with deep, robust thermal breaks to achieve the ultra-low U-values required for true Passive House performance.
5. The Multi-Point Sealing System: The Airtight Lock
Superior glazing and frames are wasted if air can leak around the sash. This is where the mechanical genius of the tilt and turn mechanism shines. Unlike simple sliding or casement windows, high-performance tilt and turn windows feature a multi-point locking mechanism.
· When the handle is turned, metal locking pins (or "espagnolettes") engage from the sash into the frame at multiple points around the entire perimeter—top, sides, and bottom.
· This action simultaneously compresses two, and often three, continuous perimeter seals. This creates an airtight and watertight compression gasket far more effective than the simple friction seal of a typical window.
· The result is exceptional airtightness (measured as ≤ 0.3 m³/(m·h) at 50 Pa), which is essential for preventing energy loss, eliminating drafts, and ensuring the building's mechanical ventilation system works with maximum efficiency.
When these three elements—high-performance glazing, thermally broken frames, and a compression sealing system—are integrated into a single, precision-engineered product like a European-style tilt and turn window, you have the fundamental component that makes slashing energy bills by 90% a tangible reality. It's not a secret magic trick; it's the result of deliberate, meticulous engineering.
6.How Tilt & Turn Windows Slash Energy Bills: The Mechanisms of Savings
The staggering energy savings promised by the Passive House standard aren't magic—they're physics, enabled by precision engineering. At the heart of this system, high-performance Tilt & Turn windows act as a dynamic thermal barrier. Here’s a detailed look at the mechanisms that allow them to cut energy bills by up to 90%.
1. Unbeatable Airtightness: Sealing the Envelope
Traditional windows are often the weakest link in a building's thermal envelope, with drafts accounting for massive heat loss. The Tilt & Turn mechanism is engineered for perfection:
· Multi-Point Locking: When closed and locked, the window sash is compressed against the frame at multiple points around its entire perimeter, creating a uniform, gasket-tight seal that simple sliding or casement windows cannot match.
· Elimination of Infiltration: This hermetic seal stops cold air from leaking in and warm air from leaking out, drastically reducing the load on your heating and cooling systems. It's the foundational step for any Passive House.
For a window to perform at this level, the hardware is critical. High-quality components, like those found in Engineered Tilt & Turn systems, are non-negotiable for achieving and maintaining this airtightness over decades.
2. Superior Insulation: The Triple-Glazed Advantage
Airtightness is paired with exceptional insulation. Passive House Tilt & Turn windows are almost always triple-glazed, featuring:
· Multiple Gas-Filled Cavities: Gases like argon or krypton between the panes are poor conductors of heat, providing superior insulation compared to air.
· Low-E Coatings: Microscopic, invisible metallic coatings on the glass reflect interior heat back into the room during winter and reflect solar heat away during summer.
· Warm Edge Spacers: The spacers that separate the glass panes are thermally broken, preventing condensation and heat loss at the window's edge—a common weak spot.
This combination results in a window with a U-value (measure of heat loss) so low it acts more like an insulated wall than a traditional window.
3. Thermal Bridge-Free Installation
Even the best window will fail if installed poorly. A critical mechanism for savings is eliminating "thermal bridges"—paths where heat can bypass the insulation.
· Flush Installation: Tilt & Turn windows are installed in line with the wall's insulation layer, not set back in the rough opening. This ensures the insulation wraps continuously around the frame.
· Specialized Tapes & Sealants: The connection between the window frame and the building structure is sealed with airtight and vapor-open tapes, maintaining the integrity of the building envelope. Proper installation is a specialty, reflecting the kind of precision experts in high-performance building systems champion.
4. Controlled Ventilation Without Waste
Homes need fresh air, but opening a standard window wastes massive amounts of energy. The Tilt & Turn function provides the perfect solution:
· Tilt Mode for Background Ventilation: The top-down micro-ventilation allows stale, moist air to escape safely and continuously—even in rain—without creating drafts or significant temperature drops. This prevents over-ventilation and the associated energy penalty.
· Turn Mode for Purge Ventilation: When you need to quickly refresh the air in the room, the full opening allows for maximum airflow, then can be sealed shut again with its perfect airtight seal.
This controlled approach works in tandem with a Heat Recovery Ventilator (HRV) in a Passive House, ensuring fresh air without the energy waste.
In summary, the savings are not from one single feature, but from the synergy of airtight sealing, superior glazing, meticulous installation, and intelligent ventilation control. Together, these mechanisms transform windows from a liability into a powerhouse of energy efficiency, making the 90% reduction in heating and cooling bills not just a secret, but an achievable reality.
7.Beyond Energy: Acoustic, Security, Comfort, and Value Benefits
While the dramatic energy savings are the headline, the advantages of high-performance tilt and turn windows extend far beyond your utility bill. They fundamentally enhance the quality of your living environment and the long-term value of your home.
Acoustic Serenity: Your Peaceful Retreat
In our noisy world, true quiet is a luxury. The same multi-point locking seals and robust construction that make these windows airtight also create an exceptional acoustic barrier. The compression gaskets and often thicker, laminated glass options work together to drastically reduce external noise from traffic, neighbors, or weather, transforming your Passive House into a serene sanctuary.
Uncompromising Security & Peace of Mind
Security is built into the very design. When closed and locked, the multi-point locking mechanism—often featuring mushroom-shaped bolts—secures the sash into the frame at multiple points on all four sides. This makes it incredibly resistant to forced entry, far surpassing the single latch point of typical windows. At Guyu Hardware, we engineer our hardware systems, like those in our tilt and turn collection, to meet the highest international standards for durability and security, giving you true peace of mind.
Superior Comfort & Control
Comfort is more than temperature. It's about eliminating drafts, cold spots, and condensation. The perfect seal ensures consistent indoor temperatures from floor to ceiling and wall to wall. Furthermore, the dual-mode operation offers unparalleled ventilation control:
· Tilt Mode: Provides secure, draft-free ventilation even in rain, perfect for night-time airing or when you're away.
· Turn Mode: Allows for easy, full opening for cleaning, maximum fresh air, or emergency egress.
This intelligent design puts you in complete command of your indoor climate and airflow.
Enhanced Property Value & Durability
Investing in certified Passive House components is a signal of quality and forward-thinking design. These windows are built to last for decades with minimal maintenance, thanks to high-quality materials and hardware. For builders and homeowners, specifying systems from a dedicated supplier like Guyu Hardware ensures performance integrity. This combination of ultra-efficiency, luxury comfort, and proven durability is a powerful value proposition that appeals to discerning future buyers, making it a smart investment that pays back in savings and resale value.
In essence, tilt and turn windows are not just a component of a Passive House; they are a cornerstone of a healthier, quieter, safer, and more valuable home.
8.Key Considerations: Cost, Installation, and System Integration
While the long-term energy savings of a Passive House with Tilt & Turn windows are undeniable, the initial investment and installation process require careful planning. Understanding these factors upfront ensures a successful project that delivers on its promise of ultra-efficiency.
Cost: A Long-Term Investment, Not Just an Expense
High-performance Tilt & Turn windows represent a significant upfront cost compared to standard windows. This is due to their superior materials (like thermally broken frames), multi-point locking hardware, and the precision engineering required for an airtight seal. However, it's crucial to view this as a capital investment. By slashing heating and cooling demands by up to 90%, these windows pay for themselves over time through drastically reduced utility bills. Furthermore, they enhance property value, improve comfort year-round, and contribute to building durability.
Installation: Precision is Paramount
This is the most critical phase. A Tilt & Turn window's performance is only as good as its installation. It must be installed by trained professionals who understand Passive House principles. Key steps include:
· Airtight Sealing: The window must be integrated into the building's airtight layer using specialized tapes and sealants, preventing thermal bridges and drafts.
· Perfect Alignment: The frame must be perfectly level, square, and plumb to ensure the multi-point locks engage correctly and the seals compress evenly around the entire perimeter.
· Insulated Installation: The gap between the window frame and the rough opening is filled with insulation, maintaining the thermal envelope's continuity.
For architects, builders, and homeowners seeking reliable performance, partnering with a specialist like Guyu Hardware ensures access to windows designed for this rigorous standard and the technical support necessary for correct implementation.
System Integration: The Window as Part of a Whole
Tilt & Turn windows do not work in isolation. Their effectiveness is multiplied when integrated into a holistic Passive House system:
· Mechanical Ventilation with Heat Recovery (MVHR): Because the building is so airtight, an MVHR system is essential. It continuously supplies fresh, filtered air while recovering over 90% of the heat from the stale air being expelled. The windows' airtightness makes this system incredibly efficient.
· Thermal Bridge-Free Design: The window installation detail must be designed to eliminate thermal bridges where heat can easily escape.
· High-Performance Glazing: The windows themselves must feature triple-pane glass with low-emissivity coatings and argon or krypton gas fill, working in concert with the insulated frame.
Choosing the right components is vital. Explore Guyu Hardware's Tilt & Turn System collection to see windows engineered to meet these demanding integration requirements, ensuring your entire building system performs in harmony.
9.Real-World Applications and Case Studies
The principles of Passive House design are proven in theory, but their true power is revealed in real-world performance. Across diverse climates and building types, the strategic use of high-performance Tilt & Turn windows is a common denominator in achieving radical energy savings and occupant comfort. Here are a few illustrative examples.
1. The Urban Retrofit: A 1920s Townhouse Transformation
A classic brick townhouse in a northeastern U.S. city was undergoing a deep energy retrofit to meet Passive House standards. The original single-pane windows were a major source of drafts and heat loss. The architects specified modern Tilt & Turn windows for the renovation. The result?
· Energy Bill Reduction: Overall heating demand was reduced by over 85%. The homeowners reported that their previously drafty and cold living room now maintains a stable, comfortable temperature year-round.
· Functionality Win: The tilt function allows for secure ventilation, even during rain, which is crucial for managing humidity in the tight building envelope. The inward-turn function made cleaning the exterior glass from inside simple and safe, a major advantage on the upper floors.
· Noise Reduction: The multi-chambered frames and triple-pane glazing of their new windows cut exterior traffic noise by over 70%, transforming the urban living experience.
2. The New Build in a Cold Climate: A Suburban Passive House
In a region with harsh winters, a new family home was built from the ground up to the Passive House Classic certification. Window selection was critical. High-performance Tilt & Turn windows were installed throughout.
· The "90% Slash": This project is a prime example of the headline figure. Compared to a similar-sized home built to standard code, its annual space heating bill is approximately 90% lower. The windows act as net energy gainers, not losers, on sunny winter days.
· Airtightness Achievement: The project's blower door test achieved an extraordinary 0.4 ACH@50Pa. The precision-engineered compression seals of the Tilt & Turn windows were essential in hitting this target, eliminating infiltration losses.
· Durability & Air Quality: The robust hardware and multi-point locking system ensure the windows will maintain their airtight seal for decades. The secure micro-ventilation (tilt) mode provides constant fresh air without energy penalty, supporting a healthy indoor environment.
3. The Commercial Application: A Quiet Office in a Noisy District
A small design firm located on a busy mixed-use street renovated their office space. Their primary goals were to reduce noise pollution and lower soaring cooling costs from large, inefficient windows.
· Acoustic & Thermal Solution: They installed large-format Tilt & Turn windows with acoustic laminate glass. The combination of the airtight seal when closed and the specialized glazing created a dramatic drop in noise, boosting concentration and productivity.
· Cooling Load Minimized: The solar heat gain coefficient (SHGC) of the glazing was tuned to minimize summer heat gain. Combined with the airtight seal preventing hot air infiltration, the building's cooling system load was reduced by an estimated 60%, significantly lowering summer energy bills.
These cases demonstrate that whether for historic retrofit, new ultra-efficient construction, or commercial comfort, Tilt & Turn windows are a pivotal technology. Their superior sealing, versatile operation, and durability make them the logical choice for any project serious about energy performance. For architects, builders, and homeowners looking to specify windows that can deliver these results, understanding the quality of the hardware is paramount. The smooth operation and long-term reliability of a Tilt & Turn window depend on its internal mechanism. Companies like Guyu Hardware specialize in the high-quality tilt and turn systems that enable these windows to perform flawlessly for years, ensuring the energy savings and comfort are built to last.
10. Conclusion: The Sustainable Choice for the Future
The journey to a Passive House isn't just about superior insulation or an airtight seal; it's about intelligent component choices that work in harmony. As we've seen, tilt and turn windows are not merely a window style—they are a critical performance system. By achieving unparalleled airtightness, maximizing thermal comfort, and offering versatile natural ventilation, they are the unsung heroes that help turn the dream of slashing energy bills by 90% into a tangible, lived reality.
Choosing the right components for such a high-performance build is paramount. It requires hardware that is engineered to the most exacting standards, ensuring that the theoretical performance of the window is delivered consistently for decades. This is where precision manufacturing and rigorous testing become non-negotiable.
At Guyu Hardware, we specialize in the high-quality tilt and turn systems that these ultra-efficient homes demand. Our commitment is to provide the robust, reliable hardware that forms the functional heart of these exceptional windows, ensuring their longevity and flawless operation.
Investing in a Passive House is an investment in a sustainable, cost-effective, and exceptionally comfortable future. To explore the specific tilt and turn window systems and hardware that can make this future possible for your project, we invite you to view our dedicated collection. The path to radical energy efficiency is built one precise, intentional choice at a time—starting with the windows that open to a new standard of living.
